SRS Ontology: Geosrs

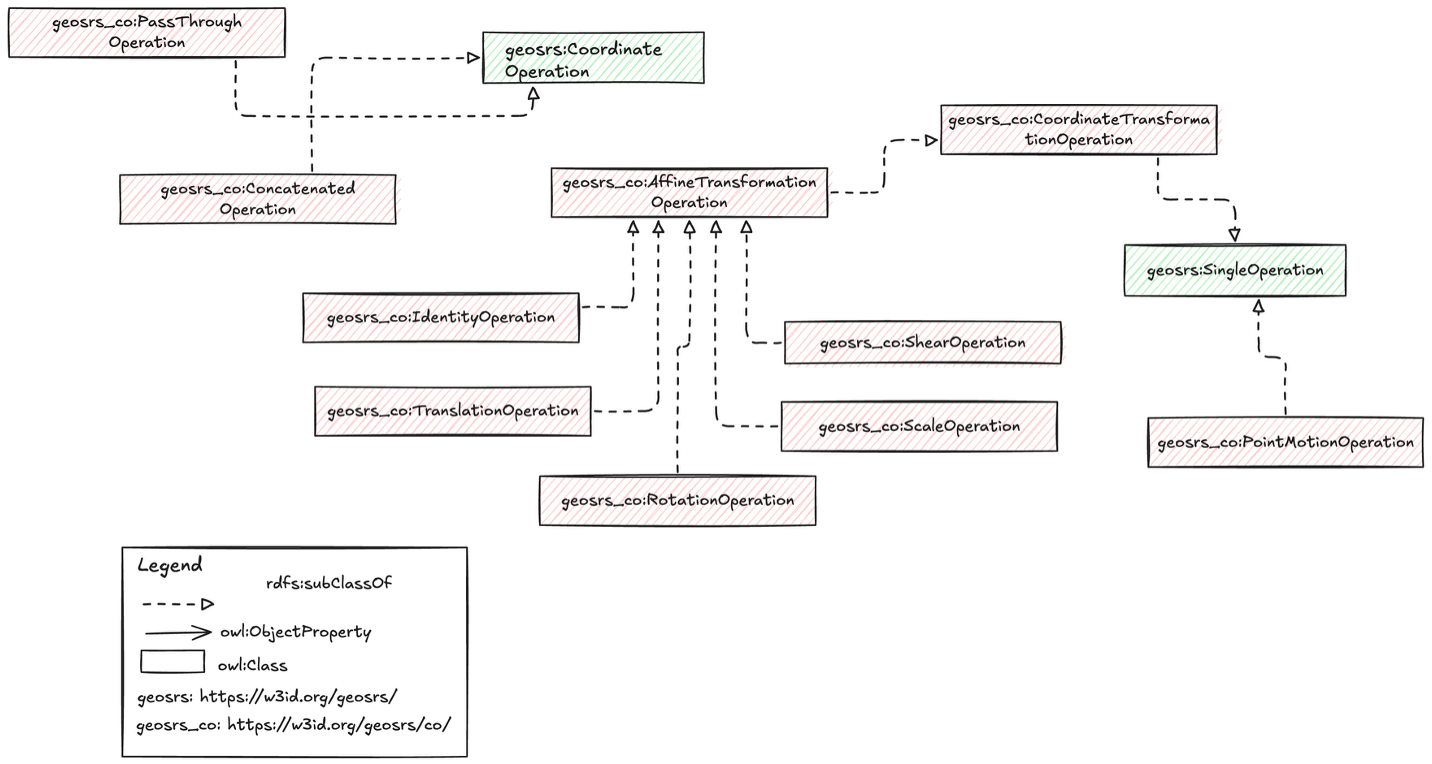

Classes ↑

geocrs:CoordinateTransformationOperation
Affine Transformation Operation
Coordinate Operation
Geographic Object
Identity Operation
Operation Parameter Group
Parameter Value Group
Pass Through Operation
Point Motion Operation
Register Operations
Rotation Operation
Scale Operation
Shear Operation
Translation Operation

Coordinate Transformation Operation^c # Classes

URI	`geocrs:CoordinateTransformationOperation`
Description	Coordinate operation in which the two coordinate reference systems are based on different datums.
Super-classes	geosrs:SingleOperation^c

Affine Transformation Operation^c # Classes

URI	`https://w3id.org/geosrs/co/AffineTransformationOperation`
Description	Affine coordinate transformation operation
Super-classes	geosrs:CoordinateTransformationOperation^c file:///home/runner/work/ontology-crs/ontology-crs/docs/co.ttl^c
Sub-classes	Translation Operation^c Shear Operation^c Identity Operation^c Scale Operation^c Rotation Operation^c

Coordinate Operation^c # Classes

URI	`https://w3id.org/geosrs/co/ConcatenatedOperation`
Description	Ordered sequence of two or more single coordinate operations. Note: The sequence of coordinate operations is constrained by the requirement that the source coordinate reference system of step (n + 1) shall be the same as the target coordinate reference system of step (n). The source coordinate reference system of the first step and the target coordinate reference system of the last step are the source and target coordinate reference system associated with the concatenated coordinate operation. For a concatenated coordinate operation sequence of n coordinate operations: source CRS (concatenated coordinate operation) .eq. source CRS (coordinate operation step 1) target CRS (coordinate operation step i) .eq. source CRS (coordinate operation step i + 1); i .eq. 1 ...(n - 1) target CRS (concatenated coordinate operation) .eq. target CRS (coordinate operation step n) Instead of a forward coordinate operation, an inverse coordinate operation may be used for one or more of the coordinate operation steps mentioned above, if the inverse coordinate operation is uniquely defined by the forward coordinate operation method.
Super-classes	geosrs:CoordinateOperation^c

Geographic Object^c # Classes

URI	`https://w3id.org/geosrs/co/GeographicObject`
Description	Identifier of a geographic feature of which the coordinates are used as operation parameters.
Super-classes	iso19107:Geometry^c

Identity Operation^c # Classes

URI	`https://w3id.org/geosrs/co/IdentityOperation`
Description	Identity transformation operation
Super-classes	Affine Transformation Operation^c

Operation Parameter Group^c # Classes

URI	`https://w3id.org/geosrs/co/OperationParameterGroup`
Description	Definition of a group of related parameters used by a coordinate operation method.
Super-classes	geosrs:GeneralOperationParameter^c

Parameter Value Group^c # Classes

URI	`https://w3id.org/geosrs/co/ParameterValueGroup`
Description	Group of related parameter values. Note: The same group can be repeated more than once in a coordinate operation or higher level ParameterValueGroup, if those instances contain different values of one or more ParameterValues which suitably distinguish among those groups.
Super-classes	geosrs:GeneralParameterValue^c

Pass Through Operation^c # Classes

URI	`https://w3id.org/geosrs/co/PassThroughOperation`
Description	Specification of a subset of coordinate tuples that is subject to a coordinate operation
Super-classes	geosrs:CoordinateOperation^c

Point Motion Operation^c # Classes

URI	`https://w3id.org/geosrs/co/PointMotionOperation`
Description	Mathematical operation that decribes the change of coordinate values within one coordinate reference system due to the motion of the point between one coordinate epoch and another coordinate epoch Note: In this document the motion is due to tectonic plate movement or deformation.
Super-classes	geosrs:SingleOperation^c

Register Operations^c # Classes

URI	`https://w3id.org/geosrs/co/RegisterOperations`
Description	Operations supported in the Coordinate Operations package.

Rotation Operation^c # Classes

URI	`https://w3id.org/geosrs/co/RotationOperation`
Description	Rotation transformation operation
Super-classes	Affine Transformation Operation^c

Scale Operation^c # Classes

URI	`https://w3id.org/geosrs/co/ScaleOperation`
Description	Scale transformation operation
Super-classes	Affine Transformation Operation^c

Shear Operation^c # Classes

URI	`https://w3id.org/geosrs/co/ShearOperation`
Description	Shear transformation operation
Super-classes	Affine Transformation Operation^c

Translation Operation^c # Classes

URI	`https://w3id.org/geosrs/co/TranslationOperation`
Description	Translation transformation operation
Super-classes	Affine Transformation Operation^c

URI	`https://w3id.org/geosrs/co/derivingConversion`
Domain(s)	geosrs:DerivedCRS^c
Range(s)	geosrs:Conversion^c

URI	`https://w3id.org/geosrs/co/method`
Domain(s)	geosrs:CRS^c
Range(s)	geosrs:CoordinateOperation^c

URI	`https://w3id.org/geosrs/co/parameter`
Domain(s)	geosrs:Conversion^c
Range(s)	geosrs:OperationParameter^c

Namespaces ↑

default (geosrs_co): https://w3id.org/geosrs/co/
brick: https://brickschema.org/schema/Brick#
csvw: http://www.w3.org/ns/csvw#
dc: http://purl.org/dc/elements/1.1/
dcam: http://purl.org/dc/dcam/
dcat: http://www.w3.org/ns/dcat#
dcmitype: http://purl.org/dc/dcmitype/
dcterms: http://purl.org/dc/terms/
doap: http://usefulinc.com/ns/doap#
foaf: http://xmlns.com/foaf/0.1/
geo: http://www.opengis.net/ont/geosparql#
geosrs: https://w3id.org/geosrs/
odrl: http://www.w3.org/ns/odrl/2/
org: http://www.w3.org/ns/org#
owl: http://www.w3.org/2002/07/owl#
prof: http://www.w3.org/ns/dx/prof/
prov: http://www.w3.org/ns/prov#
qb: http://purl.org/linked-data/cube#
rdf: http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs: http://www.w3.org/2000/01/rdf-schema#
sdo: https://schema.org/
sh: http://www.w3.org/ns/shacl#
skos: http://www.w3.org/2004/02/skos/core#
sosa: http://www.w3.org/ns/sosa/
ssn: http://www.w3.org/ns/ssn/
time: http://www.w3.org/2006/time#
vann: http://purl.org/vocab/vann/
void: http://rdfs.org/ns/void#
wgs: https://www.w3.org/2003/01/geo/wgs84_pos#
xsd: http://www.w3.org/2001/XMLSchema#

^c	Classes
^op	Object Properties
^fp	Functional Properties
^dp	Data Properties
^ap	Annotation Properties
^p	Properties
ⁿⁱ	Named Individuals
